Description

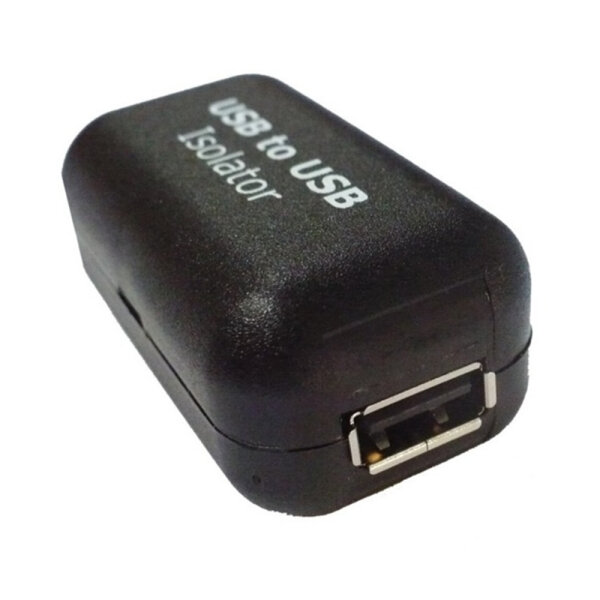

This USB to USB isolator protects your PC or Laptop while USB devices are connected to a high-voltage source.
This small USB to USB isolator of industry quality is easy to operate and offers a high-voltage barrier to protect against power surges, static and ground loop errors. It is suited for use in sensitive applications like automotive measurements.
The Ditex USB isolator is supplied with power through a USB bus and can provide 5 V / 400 mA for the supply of your USB device with integrated isolated DC-DC. This is possible when the isolator is connected to a high-performance USB host port.
Properties
- Ultra compact
- Power supply through the USB port
- Bidirectional communication
- USB 2.0 compatible
- Full speed data rate 12 Mbps
- No drivers or configuration required
- Uses standard USB Type A and Type B connectors
- Isolated power supply in the device through a DC / DC converter
- Output short circuit protection
- Short-circuit protection for D+ and D- lines
- USB and power supply isolation 1000V DC between primary and secondary side
- Isolates and protects a USB peripheral from a USB host
- Robust isolation casing with flush-fitted USB ports against direct touch
Specifications
| USB speed |
Full speed, 12 Mbps
|
|
Electric isolation
|
1000V DC, 1 minimum duration, primary to secondary side
|
|
Isolated power supply
|
400 mA maximum available on secondary port
|
|
Output short circuit protection
|
Momentarily 1 sec
|
|
Ambient temperature
|
-20°C to 50°C
|
|
Measurements
|
55mm x 30mm x 25mm (length x width x height)
|
Scope of delivery
- 1x USB to USB isolator
- 1x USB-A to USB-B connection cable
